* 【 Sanitary Ball Valve Size 】2" Tube OD Quick Clamp, fits Tri-Clamp: 2"
* 【 Sanitary Ball Valve Material and Function 】Sanitary Ball Valve is made of FOOD GRADE LEVEL MATERIAL stainless steel 304 which
have high strength and great corrosion resistance
* 【 Sanitary Ball Valve Specification 】 Maximum pressure rating: 1000 psig for WOG. Maximum working temperature: -65 Degrees to
300 degrees Fahrenheit
* 【 Sanitary Ball Valve Advantage 】Quick clamp connection for disassembling and cleaning in place
* 【 Great Design 】Non-Retention Sanitary Ball: 2-Way & 3-Piece Contruction, Lockable oval handle for manual on/off control
All Categories
Stainless steel Tri-Clamp Ball Valve
| Min. Order: | 1 Piece/Pieces |
|---|
| Packaging: | exported standard packing sanitary valves and fittings Stainless Steel 304 PTFE Lined Two Way & Three Piece |
|---|---|
| Brand: | Suote |
| Transportation: | Ocean,Land,Air,Express |
| Place of Origin: | Wenzhou, China |
| Certificate: | ISO9001 |
Product Description
Product Description
DESCRIPTION
Three-piece stainless steel tri-clamp ball valve for process flow control.
The Sanitary Ball Valves series stainless steel 304 three-piece inline sanitary ball valve offers excellent corrosion resistance for most applications. Stainless steel & PTFE work well in applications including but not limited to water, oil, gas/air, light alkali's and acids, biodiesel, fuels and alcohols.
This tri clamp ball valve has a lockable lever handle for manual on/off control. PTFE seats reduce the risk of leakage. The valve is full port for reduced friction Its inner diameter is the same as the inner diameter of the connecting pipe for maximum operating efficiency. This valve has tube OD quick clamp connections for disassembling and cleaning in place. The maximum pressure rating is 1000 pounds per square inch (gauge) (psig) for water, oil, and gas (WOG), and the maximum working temperature is 300 degrees Fahrenheit.
This tri clamp ball valve has a lockable lever handle for manual on/off control. PTFE seats reduce the risk of leakage. The valve is full port for reduced friction Its inner diameter is the same as the inner diameter of the connecting pipe for maximum operating efficiency. This valve has tube OD quick clamp connections for disassembling and cleaning in place. The maximum pressure rating is 1000 pounds per square inch (gauge) (psig) for water, oil, and gas (WOG), and the maximum working temperature is 300 degrees Fahrenheit.
* Three Piece Encapsulated Tri-Clamp Ball Valve
* 316 Stainless Steel
* Body Working Pressure: 1000 PSI WOG
* Operating Temperatures: -4° F – 393° F
* Locking Handle
* Blow-out proof stem
* 316 Stainless Steel
* Body Working Pressure: 1000 PSI WOG
* Operating Temperatures: -4° F – 393° F
* Locking Handle
* Blow-out proof stem
Easily control the flow of your process lines with this encapsulated ball valve. Connect to existing sanitary process lines with
tri-clover clamp connections.
tri-clover clamp connections.
Material ：
This 3 piece Full Port Ball Valve is made of stainless steel 304, it is corrosion resistant.
Serviceable ball valve
This stainless steel ball valve can be taken apart via threads. It can be easier serviced and cleaned.
This stainless steel ball valve can be taken apart via threads. It can be easier serviced and cleaned.
Connection Type
This full port ball valve is female-female threaded type. Female-female type connector is availabe
This full port ball valve is female-female threaded type. Female-female type connector is availabe
Seats & Seals
The material of seal is PTFE,PTFE seats reduce the risk of leakage.
Suote sanitary Ball Valve
Suote carries an extensive supply of commercial brewery, winery and food processing equipment.From basic supplies like fittings and valves, hose and food-grade washdown equipment, to bottling and packaging equipment for commercial use.
3 piece full port ball valve is not only own with the functions of opening quickly, easy to maintain, good sealing but also safety fire-safe and anti-static designs. Our company designs various kinds of ball valves for one-piece, two-piece,
three-piece, thread end, flange type, full port. Mini ball valve is also available.Chose the suitable ball valve to use in piping system.
3 piece full port ball valve is not only own with the functions of opening quickly, easy to maintain, good sealing but also safety fire-safe and anti-static designs. Our company designs various kinds of ball valves for one-piece, two-piece,
three-piece, thread end, flange type, full port. Mini ball valve is also available.Chose the suitable ball valve to use in piping system.

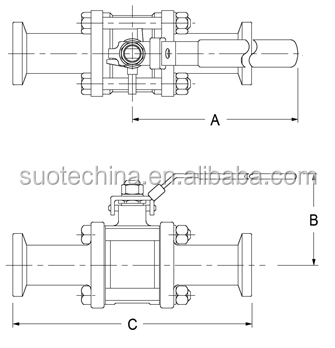

| Three Piece Encapsulated Clamp Ball Valve Part Numbers & Dimensions | | | | | | | | | ||||||||
| Size (Tube OD) | Part Number | | Dimensions | | | Torque (in/lb) | | Weight | ||||||||
| | 304 | 316L | A | B | C | Breakaway | Action | (lbs) | ||||||||
| 1/2" | BLV2C-.50-304 | BLV2C-.50-316 | 0.380 | 2.5 | 3.583 | 55 | 20 | 1.4 | ||||||||
| 3/4" | BLV2C-.75-304 | BLV2C-.75-316 | 0.62 | 2.62 | 4.016 | 71 | 32 | 1.8 | ||||||||
| 1 " | BLV2C-1.0-304 | BLV2C-1.0-316 | 0.87 | 2.73 | 4.528 | 101 | 58 | 2.6 | ||||||||
| 1-1/2" | BLV2C-1.5-304 | BLV2C-1.5-316 | 1.37 | 3.96 | 5.433 | 221 | 115 | 4.6 | ||||||||
| 2 " | BLV2C-2.0-304 | BLV2C-2.0-316 | 1.88 | 4.35 | 6.181 | 345 | 115 | 8.5 | ||||||||
| 2-1/2" | BLV2C-2.5-304 | BLV2C-2.5-316 | 2.37 | 5.48 | 6.693 | 883 | 288 | 17.8 | ||||||||
| 3" | BLV2C-3.0-304 | BLV2C-3.0-316 | 2.87 | 5.83 | 7.756 | 830 | 230 | 28.2 | ||||||||
| 4 " | BLV2C-4.0-304 | BLV2C-4.0-316 | 3.84 | 6.89 | 9.528 | 1323 | 345 | 41.4 | ||||||||
| Component | Description | Description |
| 1 | Body | TP316 Stainless Steel |
| 2 | Cap | TP316 Stainless Steel |
| 3 | Ball | TP316 Stainless Steel |
| 4 | Ball | PTFE |
| 5 | Seal | PTFE |
| 6 | Thrust Washer | PTFE |
| 7 | Stem Packing | PTFE |
| 8 | Gland Nut | TP304 Stainless Steel |
| 9 | Spring Washer | TP304 Stainless Steel |
| 10 | Stem Nut | TP304 Stainless Steel |
| 11 | Stem | TP304 Stainless Steel |
| 12 | Spring Washer | TP304 Stainless Steel |
| 13 | Nut | TP304 Stainless Steel |
| 14 | Bolt | TP304 Stainless Steel |
| 15 | Handle | TP304 Stainless Steel |
| 16 | Handle Sleeve | PVC |
| 17 | Locking Device | TP304 Stainless Steel |
| Sanitary Size | OD of Flange End | ID of Tube | OD of Tube |
| 1/2″ | 0.992 | 0.370 | 0.500 |
| 3/4″ | 0.992 | 0.620 | 0.750 |
| 1″ | 1.984 | 0.870 | 1.000 |
| 1 1/2″ | 1.984 | 1.370 | 1.500 |
| 2″ | 2.516 | 1.870 | 2.000 |
| 2 1/2″ | 3.047 | 2.370 | 2.500 |
| 3″ | 3.579 | 2.870 | 3.000 |
| 4″ | 4.682 | 3.834 | 4.000 |
| 6″ | 6.562 | 5.782 | 6.000 |
| 8″ | 8.602 | 7.782 | 8.000 |
| 10″ | 10.570 | 9.782 | 10.000 |
| 12″ | 12.570 | 11.760 | 12.000 |
